Taehwatrans Protection & Monitoring CTs are used mostly in high-end relay systems with energy metering function in virtue of excellent accuracy and stability in low range of current monitoring. The protection relay CTs normally monitor the current 6 times to 20 times rated current to trip circuit breakers when current fault is detected. Taehwatrans CTs for protection relays offer a varieties of solutions for line distance and differential protection, distributed & centralized busbar protection, machine protection, and feeder protection. Thanks to our particular manufacturing process and sophisticate design, we can achieve accuracy class of 1.0 by IEC61869-2.
Application
- Accuracy power monitoring
- High-end digital protection relay
- Power transducer
- High-end UPS periphery relay
- High end industrial power sensor
- Inverter & machine control
- Precision motor protection relay
- EV Charging Plug & Cable
General Features
- Compliant to IEC 61869-2
- High precision & Stability
- High saturation induction
- Excellent linearity
- Consistent performance over temperature changes
- Hi-potential voltage 2,500 Vac/min.
- UL Recognized
- RoHS compliant

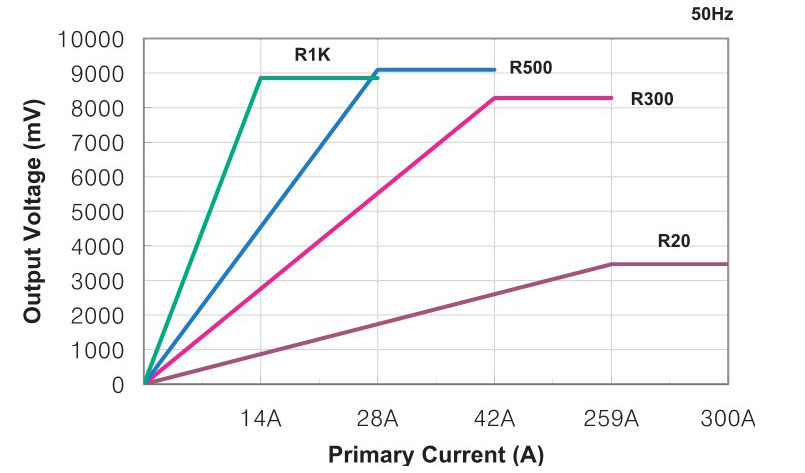

F : 50Hz
| Model NO | Current Ratio | DCR(Ω) | Imax | Linearity @1-20A range, Rb=0 | Phase Shift | Dimensions(mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (±6%) | Rb=20Ω | Rb=500Ω | Ratio Error | Phase Shfit | @1V | Window | Width | Height | Thickness | ||
| TC1V | 1000:1 | 74Ω | 60A | 9A | 1.5% | 190' | 106' | 6.8 | 23.5 | 25.0 | 11.0 |
| TC1L | 1000:1 | 74Ω | 60A | 9A | 1.5% | 190' | 106' | 8.9 | 25.0 | 22.0 | 9.0 |
| TC148V | 2000:1 | 98Ω | 190A | 38A | 0.7% | 75' | 29' | 6.8 | 23.5 | 25.0 | 11.0 |
| TC148L | 2000:1 | 98Ω | 190A | 38A | 0.7% | 75' | 29' | 6.9 | 26.8 | 23.6 | 11.0 |
| TC149V | 1500:1 | 46Ω | 260A | 31A | 1.0% | 50' | 24' | 8.9 | 25.3 | 27.5 | 17.0 |
| TC149L | 1500:1 | 46Ω | 260A | 31A | 1.0% | 50' | 24' | 8.9 | 28.4 | 24.8 | 17.0 |
| TC150V | 2000:1 | 40Ω | 590A | 69A | 2.0% | 85' | 39' | 12.9 | 38.0 | 39.3 | 14.0 |
| TC150L | 2000:1 | 40Ω | 590A | 69A | 2.0% | 85' | 39' | 12.9 | 41.3 | 37.5 | 14.0 |
| TC140V | 1000:1 | 34Ω | 82A | 8A | 1.20% | 70' | 88' | 6.8 | 23.5 | 25.0 | 11.0 |
| TC140L | 1000:1 | 34Ω | 82A | 8A | 1.20% | 70' | 88' | 6.9 | 26.8 | 23.6 | 11.0 |
| TC141V | 1000:1 | 29Ω | 156A | 14A | 0.7% | 60' | 65' | 8.9 | 25.3 | 27.5 | 17.0 |
| TC141L | 1000:1 | 29Ω | 156A | 14A | 0.7% | 60' | 65' | 8.9 | 28.4 | 24.8 | 17.0 |
| TC142V | 1000:1 | 19Ω | 230A | 17A | 2.2% | 90' | 34' | 12.9 | 38.0 | 39.3 | 14.0 |
| TC142L | 1000:1 | 19Ω | 230A | 17A | 2.2% | 90' | 34' | 12.9 | 41.3 | 37.5 | 14.0 |
| TC143V | 4000:1 | 154Ω | 840A | 210A | 1.5% | 86' | 13' | 12.9 | 38.0 | 39.3 | 14.0 |
| TC143L | 4000:1 | 154Ω | 840A | 210A | 1.5% | 86' | 13' | 12.9 | 41.3 | 37.5 | 14.0 |
| TC172V | 2500:1 | 129Ω | 170A | 45A | 1.0% | 55' | 62' | 6.8 | 23.5 | 25.5 | 11.0 |
| TC172L | 2500:1 | 129Ω | 170A | 45A | 1.0% | 55' | 62' | 6.9 | 26.8 | 23.6 | 11.0 |
| TC173V | 2500:1 | 187Ω | 240A | 70A | 1.2% | 62' | 28' | 8.9 | 25.3 | 27.5 | 17.0 |
| TC173L | 2500:1 | 187Ω | 240A | 70A | 1.2% | 62' | 28' | 8.9 | 28.4 | 24.8 | 17.0 |
| TC174V | 2500:1 | 51Ω | 790A | 100A | 1.3% | 100' | 13' | 12.9 | 38.0 | 39.3 | 14.0 |
| TC174L | 2500:1 | 51Ω | 790A | 100A | 1.3% | 100' | 13' | 12.9 | 41.3 | 37.5 | 14.0 |
| TC175V | 2500:1 | 26Ω | 790A | 67A | 1.4% | 95' | 11' | 18.4 | 50.5 | 55.5 | 23.3 |
| TC175L | 2500:1 | 26Ω | 790A | 67A | 1.4% | 95' | 11' | 19.6 | 52.0 | 48.2 | 19.2 |
| TC1PV | 1000:1 | 62Ω | 42A | 5A | 1.5% | 155' | 101' | 5.7 | 19.2 | 19.5 | 8.6 |
| TC1PV | 1000:1 | 62Ω | 42A | 5A | 1.5% | 155' | 101' | 5.7 | 19.2 | 19.5 | 8.6 |
| TC2V | 1000:1 | 41Ω | 44A | 5A | 0.9% | 80' | 115' | 8.9 | 25.3 | 27.5 | 17.0 |
| TC2L | 1000:1 | 41Ω | 44A | 5A | 0.9% | 80' | 115' | 8.9 | 27.0 | 24.0 | 9.0 |
| TC3L | 1000:1 | 33Ω | 95A | 9A | 0.6% | 64' | 57' | 15.5 | 33.4 | 30.4 | 9.2 |
| TC4V | 1000:1 | 19Ω | 230A | 17A | 0.5% | 41' | 22' | 12.9 | 38.0 | 39.3 | 14.0 |
| TC4L | 1000:1 | 19Ω | 230A | 17A | 0.5% | 41' | 22' | 12.9 | 41.3 | 37.5 | 14.0 |
| TC5V | 1000:1 | 12Ω | 260A | 16A | 1.4% | 87' | 31' | 18.4 | 50.5 | 55.5 | 20.3 |
| TC5L | 1000:1 | 12Ω | 260A | 16A | 1.4% | 87' | 31' | 19.6 | 52. | 48.2 | 19.2 |
* V : PCB Mountable
* L : Lead Wire
